Real work for Pi - Zero
April 5th. to ???

Click image for enlargement.
This thing is a Raspberry Pi Zero SBC
(Single Board Computer)
with a curent cost of about $23.00cdn
The computer is the board on the lower center of the screen, with all the wire attached. The white board to the right is a 'bread board' used for prototyping circuits. The board hidden under all the wiring, is a 4 port USB hub. It holds the keyboard/mouse interface and a wireless network dongle. The black Lucite they are all mounted on is a VISA mount to attach to the back of a TV. Video output is via HDMI and works with any 4K TV.

The circuit on the bread board are two temperature sensors, one on the board and the second attached to the wire going off to the right.



(05:04:2020)

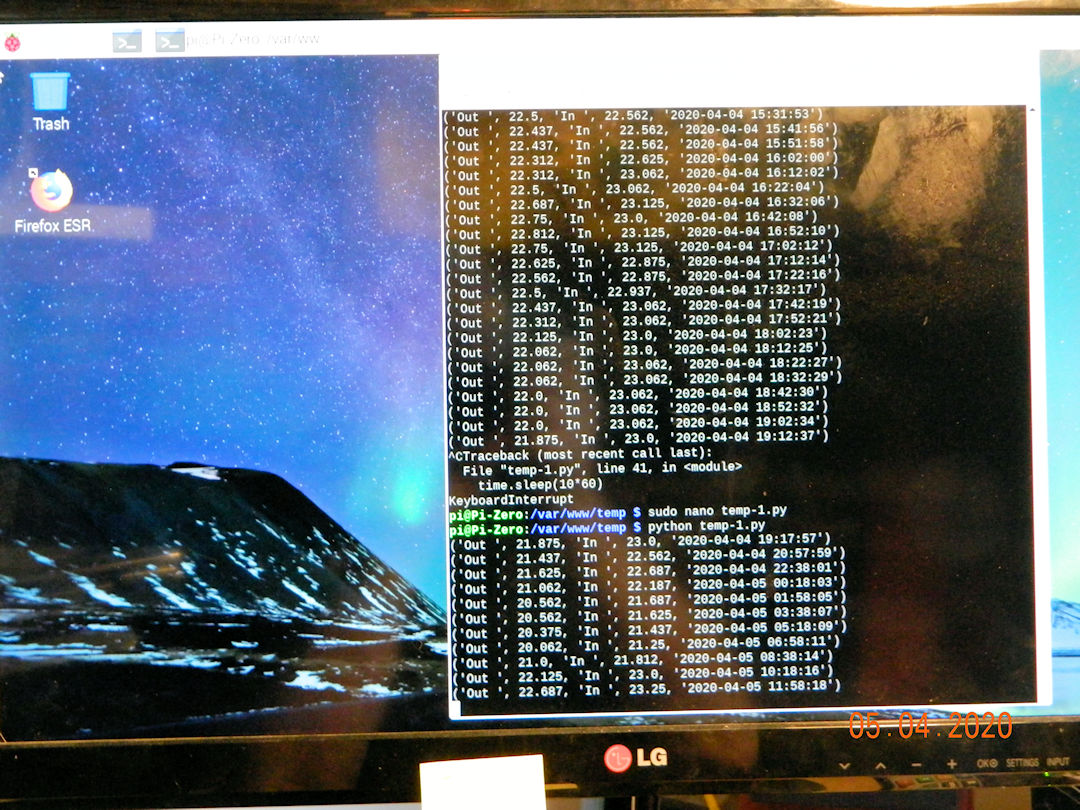

This is the HDMI TV attached to the Zero. The Zero is currently running a python program the reads the temperature sensors every 100 minutes and reports the current readings and time.



(05:04:2020)
